HTD Taper Bore Timing Pulleys
14mm Pitch 14M-40(40mm Wide Belt) 14mm Pitch 14M-55(55mm Wide Belt)
14mm Pitch 14M-85(85mm Wide Belt) 14mm Pitch 14M-115(115mm Wide Belt)
14mm Pitch 14M-170(170mm Wide Belt)
Material: Steel, Cast Iron
We can supply different size timing belt pulleys.
HTD 14M-40 pulley for belt width 40 mm
28-14M-40, 30-14M-40, 32-14M-40, 34-14M-40, 36-14M-40, 38-14M-40,
40-14M-40, 44-14M-40, 48-14M-40, 56-14M-40, 64-14M-40, 72-14M-40,
80-14M-40, 90-14M-40, 112-14M-40, 144-14M-40, 168-14M-40, 192-14M-40
HTD 14M-55 pulley for belt width 55 mm
28-14M-55, 30-14M-55, 32-14M-55, 34-14M-55, 36-14M-55, 38-14M-55,
40-14M-55, 44-14M-55, 48-14M-55, 56-14M-55, 64-14M-55, 72-14M-55,
80-14M-55, 90-14M-55, 112-14M-55, 144-14M-55, 168-14M-55, 192-14M-55
HTD 14M-85 pulley for belt width 85 mm
28-14M-85, 30-14M-85, 32-14M-85, 34-14M-85, 36-14M-85, 38-14M-85,
40-14M-85, 44-14M-85, 48-14M-85, 56-14M-85, 64-14M-85, 72-14M-85,
80-14M-85, 90-14M-85, 112-14M-85, 144-14M-85, 168-14M-85, 192-14M-85
-
The timing pulley is the mechanical part used to transmit power between the crankshaft and camshaft of the engine.
It is usually made of aluminum or steel and contains teeth that mesh with the timing belt to ensure proper synchronization between the two shafts.
The pulley is mounted on the end of the camshaft and is responsible for driving the timing belt which in turn drives the camshaft.
This allows the valves in the engine to open and close at the appropriate times, ensuring optimum engine performance.
Timing pulleys are found in a variety of engines, including those found in cars, trucks, and industrial equipment.
Materials used for timing pulleys Alumimium 6082 Steel C45 Cast iron GG25
The surface treatment of timing belt pulleys is black phosphate (except aluminum material).The timing belt pulleys that made of GG25 cast iron should be dynamically balanced. (Grade 6.3)
Product Name Aluminum Timing Pulley XL L H XH XXH T2.5 T5 T10 AT5 AT10 GT2 GT3 GT5 3M 5M 8M
Tooth timing Belt PulleyTeeth profile Trapezoidal toothed XL, L, H, XH, XXHT-toothed T2.5, T5, T10, T20
Arc toothed HTD3M, HTD5M, HTD8M, HTD14M, HTD20M, Gt2, Gt3, Gt5
Teeth Quantity 10-150 teeth or customized
Inner Bore 2-200mm H7 precision or customized
Belt width 4mm, 6mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 1/4”, 5/16”, 3/8”, 1/2”, 3/4”, 1”, 1.5”, 2”or customized
Material cast iron GG25 , steel C45, Aluminum 6061, 6082
Surface treatment Anodize, Black Oxide, Phosphate, Galvanization
-
HTD Taper Bore Timing Pulleys 8mm Pitch 8M-20(20mm Wide Belt) 8mm Pitch 8M-30(30mm Wide Belt)
8mm Pitch 8M-50(50mm Wide Belt) 8mm Pitch 8M-85(85mm Wide Belt)
Material: Steel, Cast Iron
We can supply different size timing belt pulleys.
HTD 8M-20 pulley for belt width 20 mm
P22-8M-20, P24-8M-20, P26-8M-20, P28-8M-20, P30-8M-20, P32-8M-20,
P24-8M-20, P36-8M-20, P38-8M-20, P40-8M-20, P44-8M-20, P48-8M-20,
P56-8M-20, P64-8M-20, P72-8M-20, P80-8M-20,P 90-8M-20
HTD 8M-30 pulley for belt width 30 mm
P22-8M-30, P24-8M-30, P26-8M-30, P28-8M-30, P30-8M-30, P32-8M-30,
P34-8M-30, P36-8M-30, P38-8M-30, P40-8M-30, P44-8M-30, P48-8M-30,
P56-8M-30, P64-8M-30, P72-8M-30, P80-8M-30, P90-8M-30, P112-8M-30
HTD 8M-50 pulley for belt width 50 mm
P22-8M-50, P24-8M-50, P26-8M-50, P28-8M-50, P30-8M-50, P32-8M-50,
P34-8M-50, P36-8M-50, P38-8M-50, P40-8M-50, P44-8M-50, P48-8M-50,
P56-8M-50, P64-8M-50, P72-8M-50, P80-8M-50, P90-8M-50, P112-8M-50
HTD 8M-85 pulley for belt width 85 mm
P22-8M-85,P 24-8M-85, P26-8M-85, P28-8M-85, P30-8M-85, P32-8M-85
P34-8M-85, P36-8M-85, P38-8M-85, P40-8M-85, P44-8M-85, P48-8M-85
P56-8M-85,P 64-8M-85, P72-8M-85, P80-8M-85, P90-8M-85, P112-8M-85
-
-
-
-
-
HTD Taper Bore Timing Pulleys 5mm Pitch 5M-15
34-5M-15~150-5M-15
Material: Steel, Cast Iron
-
-
Timing Pilot Bore Pulley H075,H100,H150,H200,H300 Material Steel Cast Iron
-

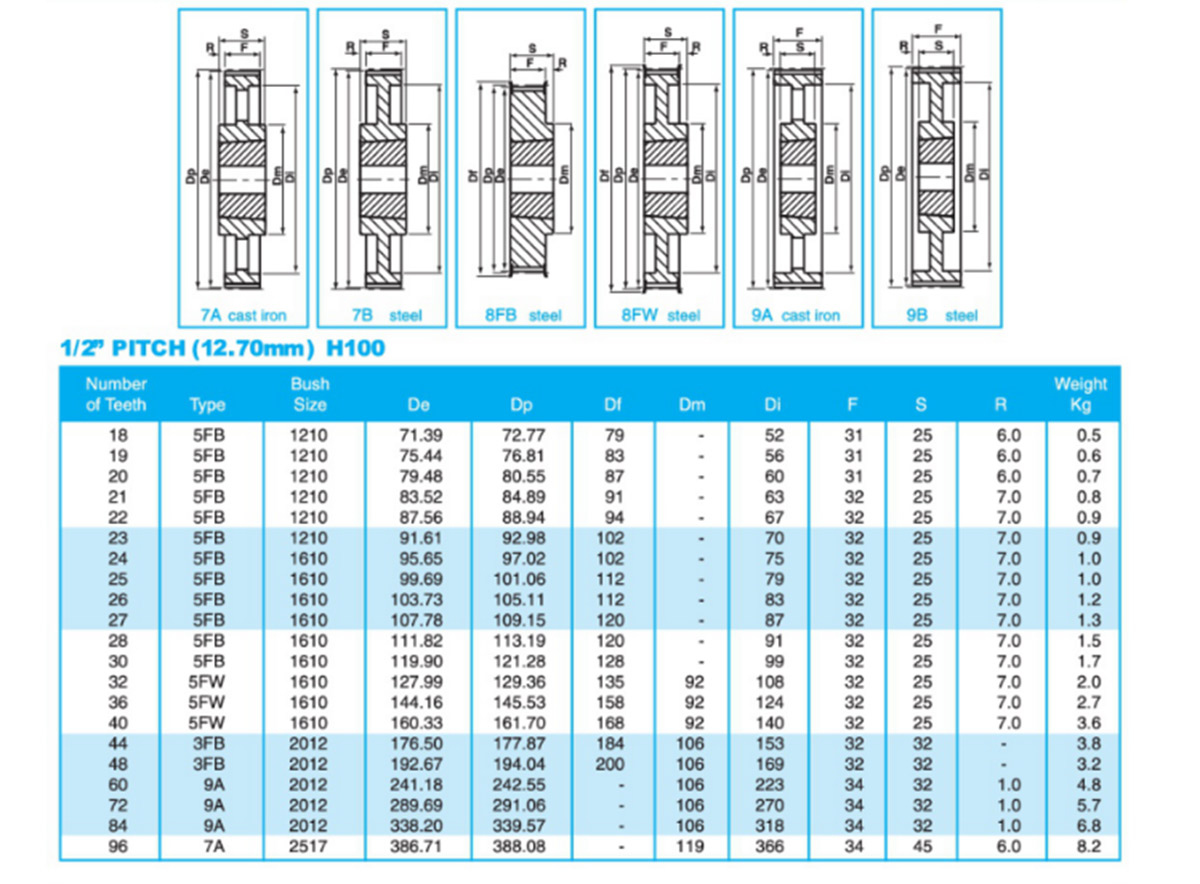

Taper Bore timing Pulleys H

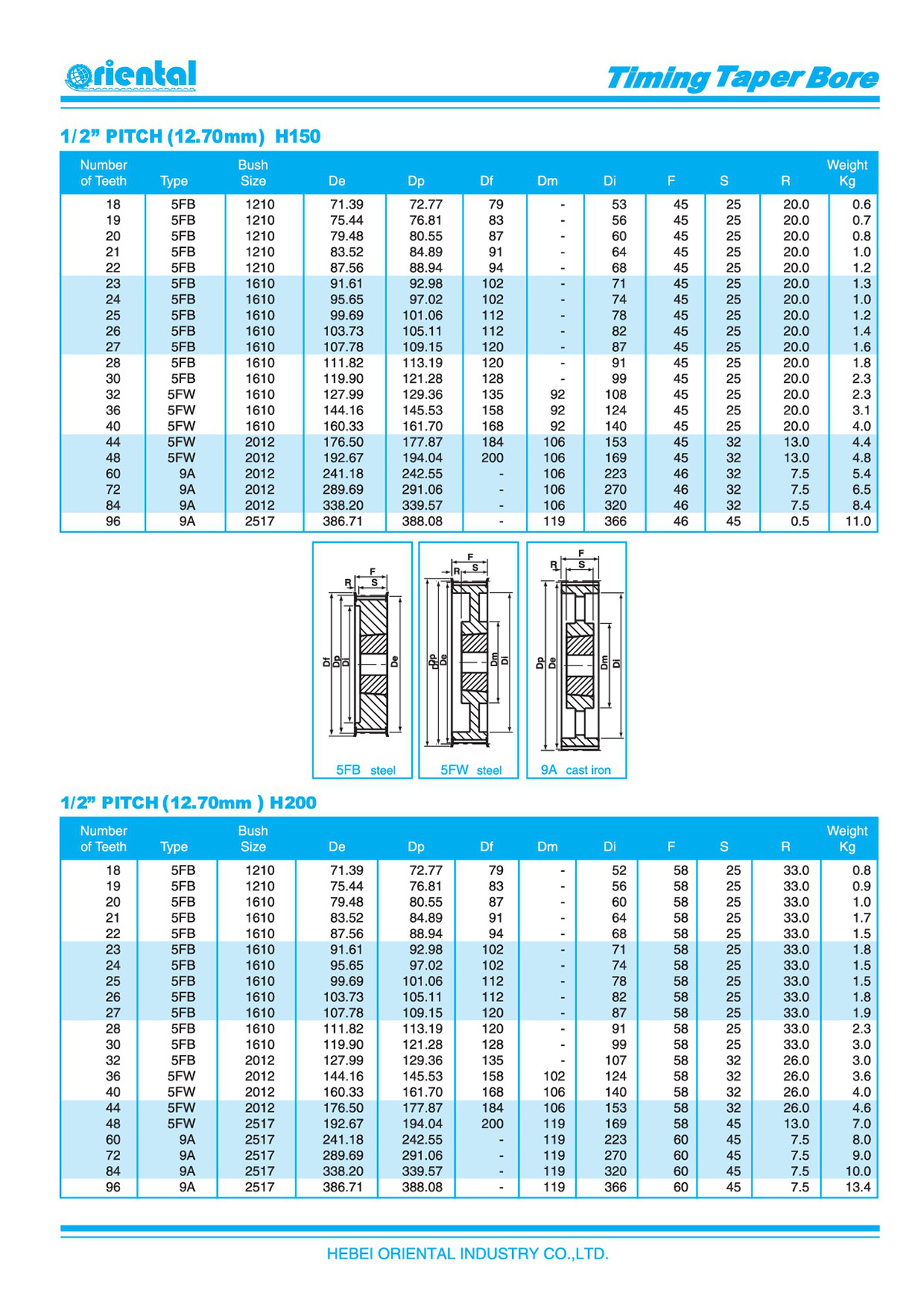

Taper Bore timing Pulleys H100，Taper Bore timing Pulleys H150, Taper Bore timing Pulleys H200,

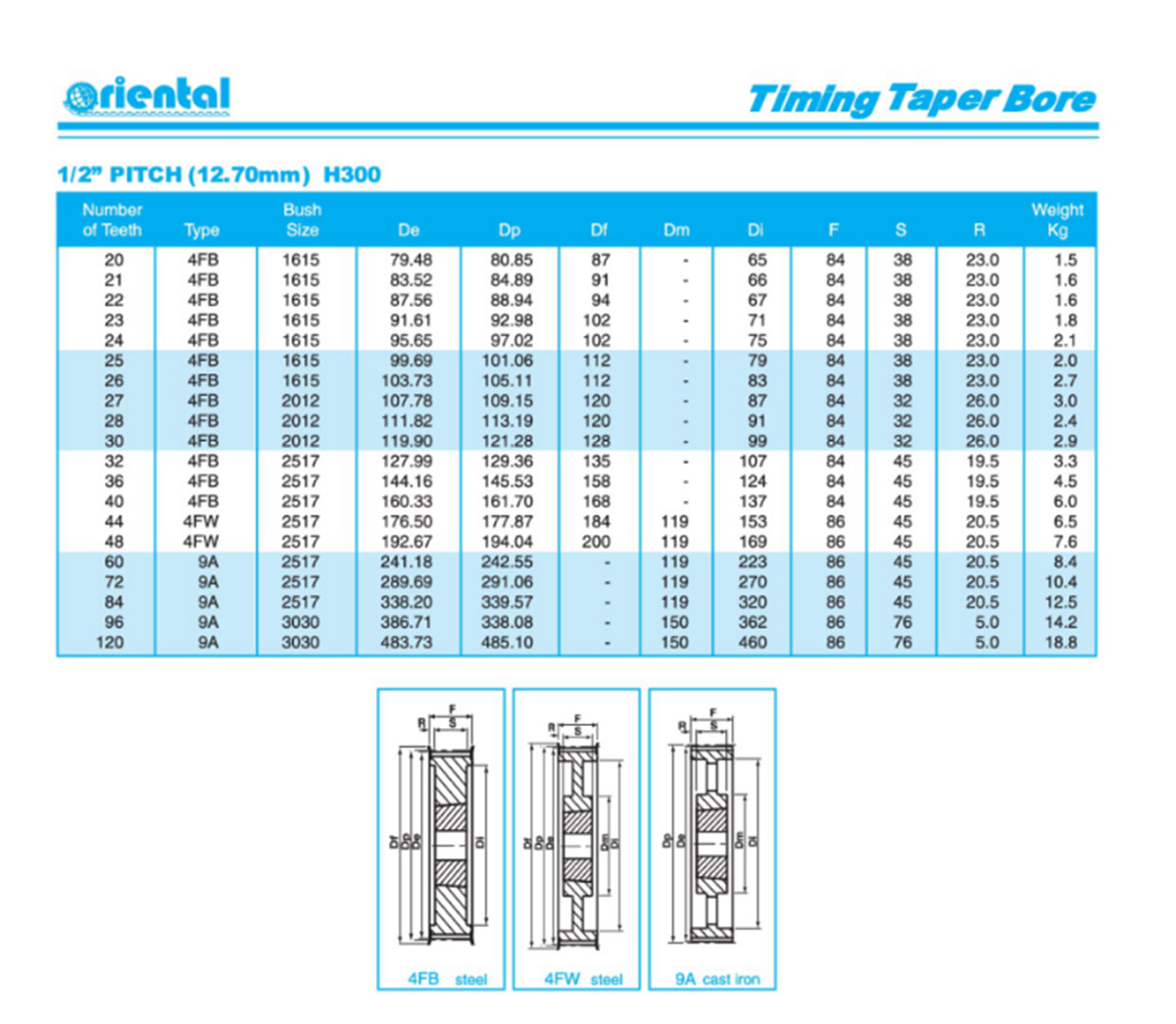

Taper Bore timing Pulleys H300
Material steel, Cast iron
