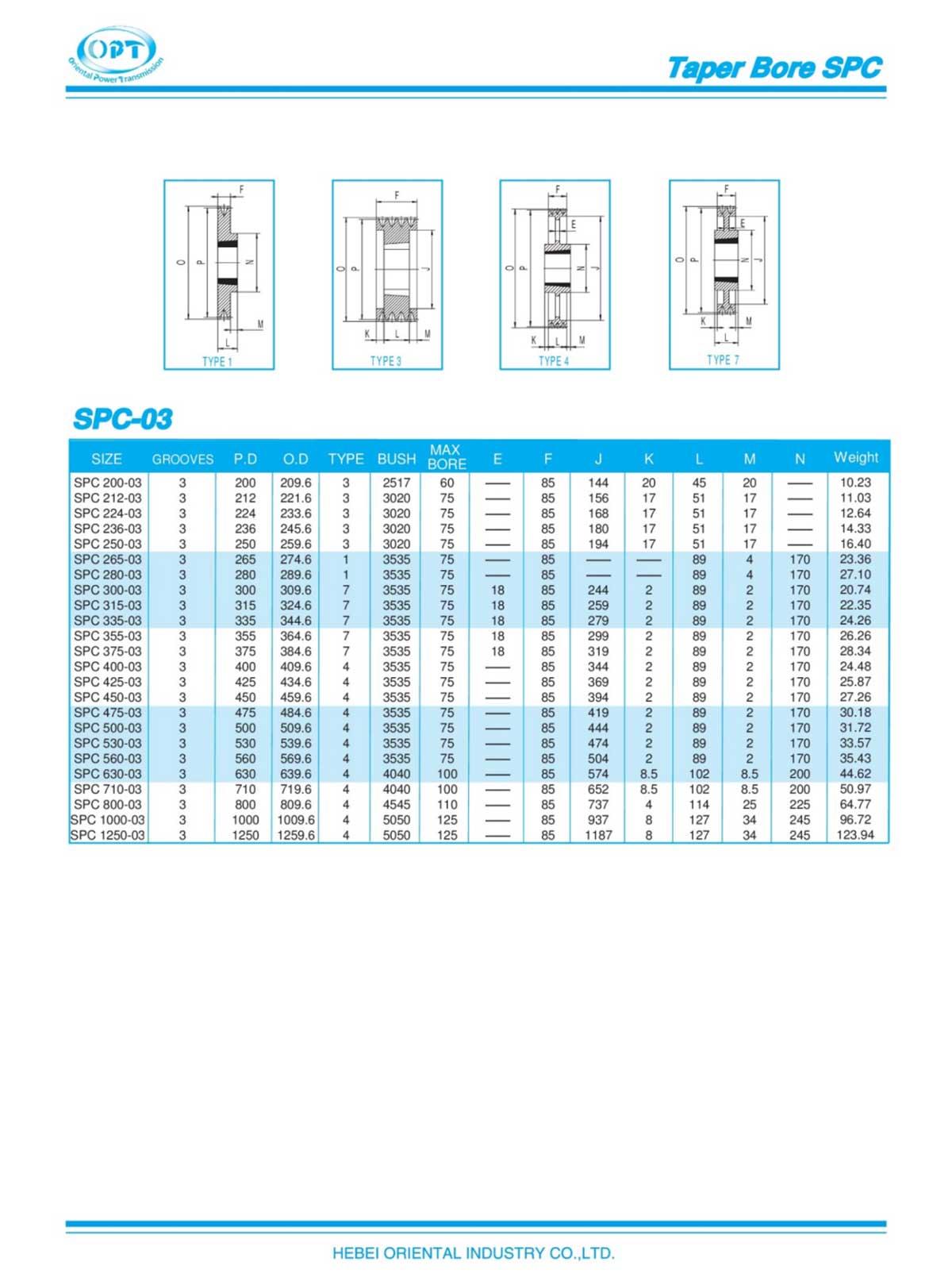

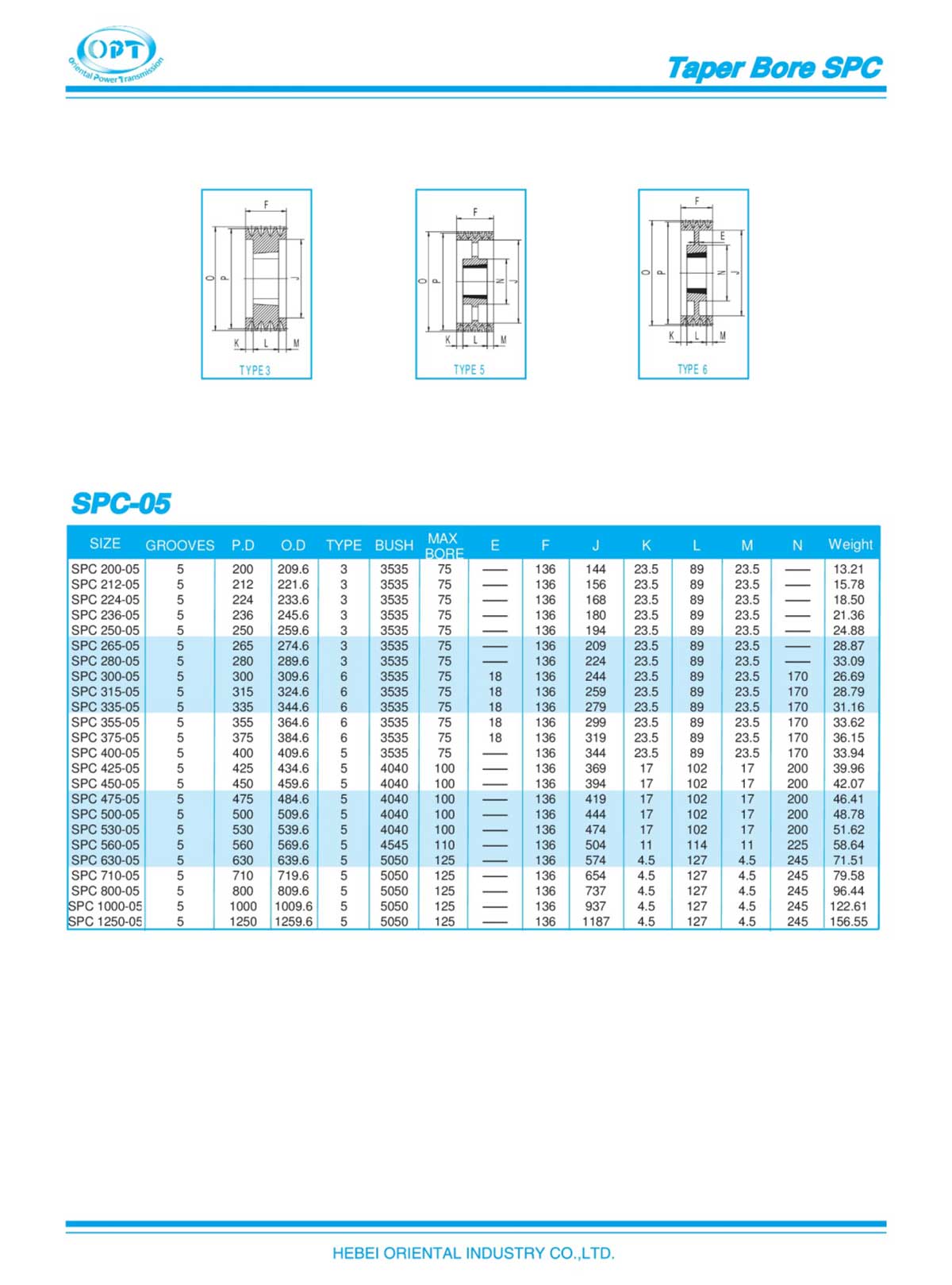

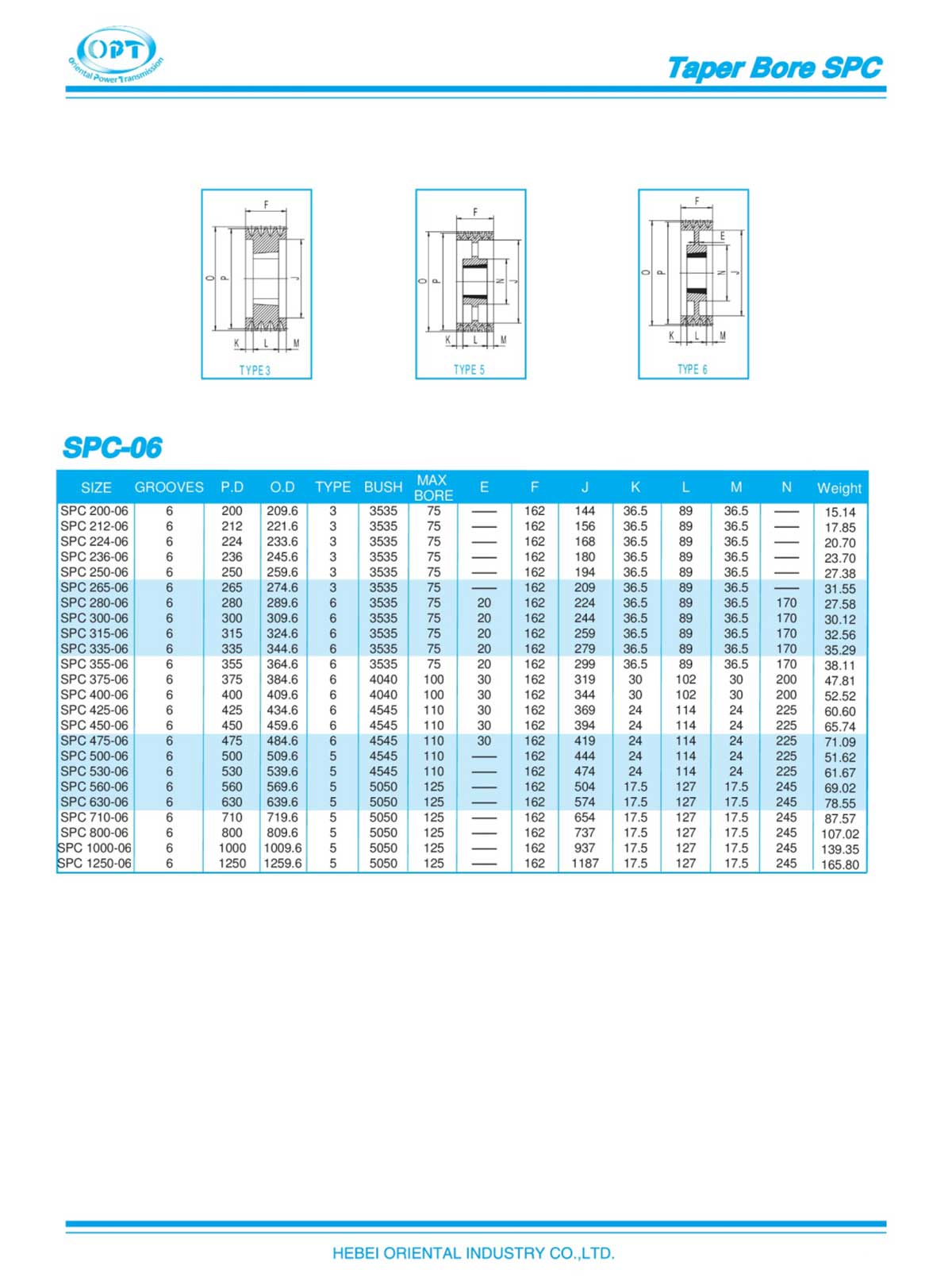

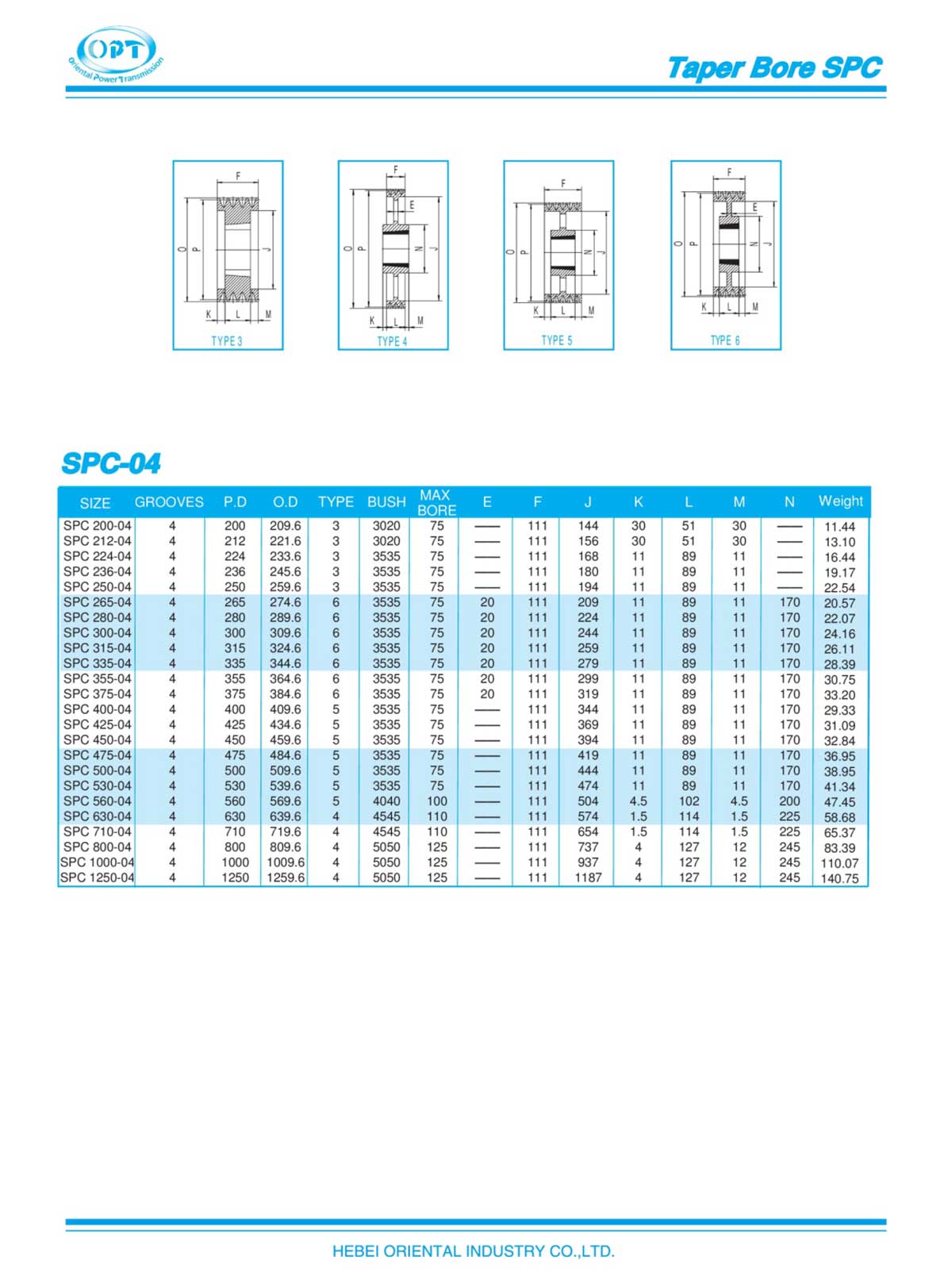

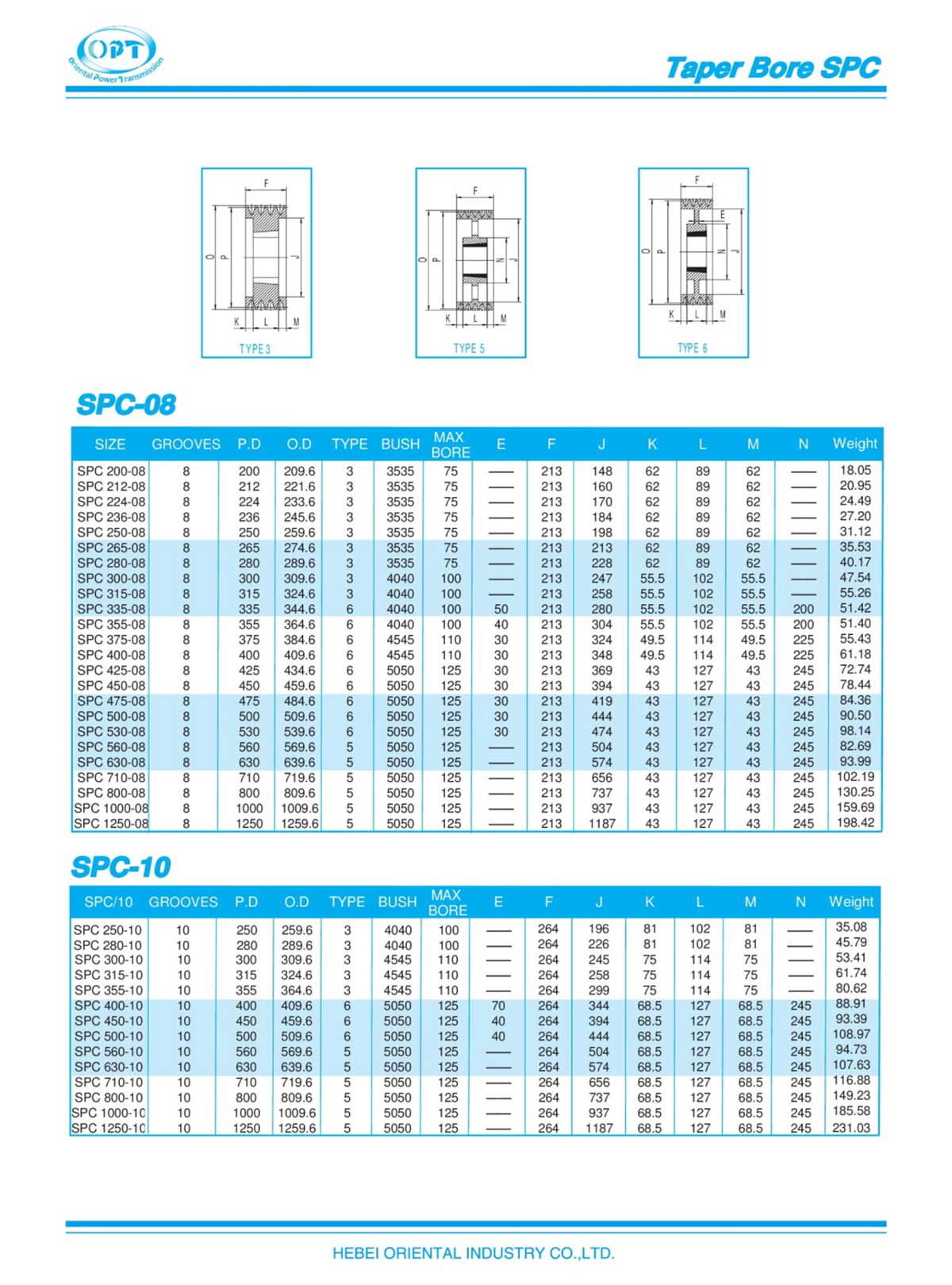

SPC-3 SPC-4 SPC-5 SPC-6 SPC-8 SPC-10
Narrow V belt SPZ SPA SPB SPC, each type of triangle belt defines the section size of triangle belt. At the same time, the minimum diameter of the small belt pulley corresponding to each wheel groove Angle of each type of triangle belt is specified, but the large belt pulley is not specified. The belt pulley groove Angle is divided into 34 degrees 38 degrees, the specific selection should be based on the belt pulley groove type and benchmark diameter selection; The slot Angle of the belt pulley is related to the diameter of the belt pulley. The recommended slot angles of different types of belt pulley in different diameters are as follows: SPC V-belt pulley When the pulley diameter <=315mm, the Angle is 34 degrees. SPC V-belt pulley When the pulley diameter >315mm, the Angle is 38 degrees.
-

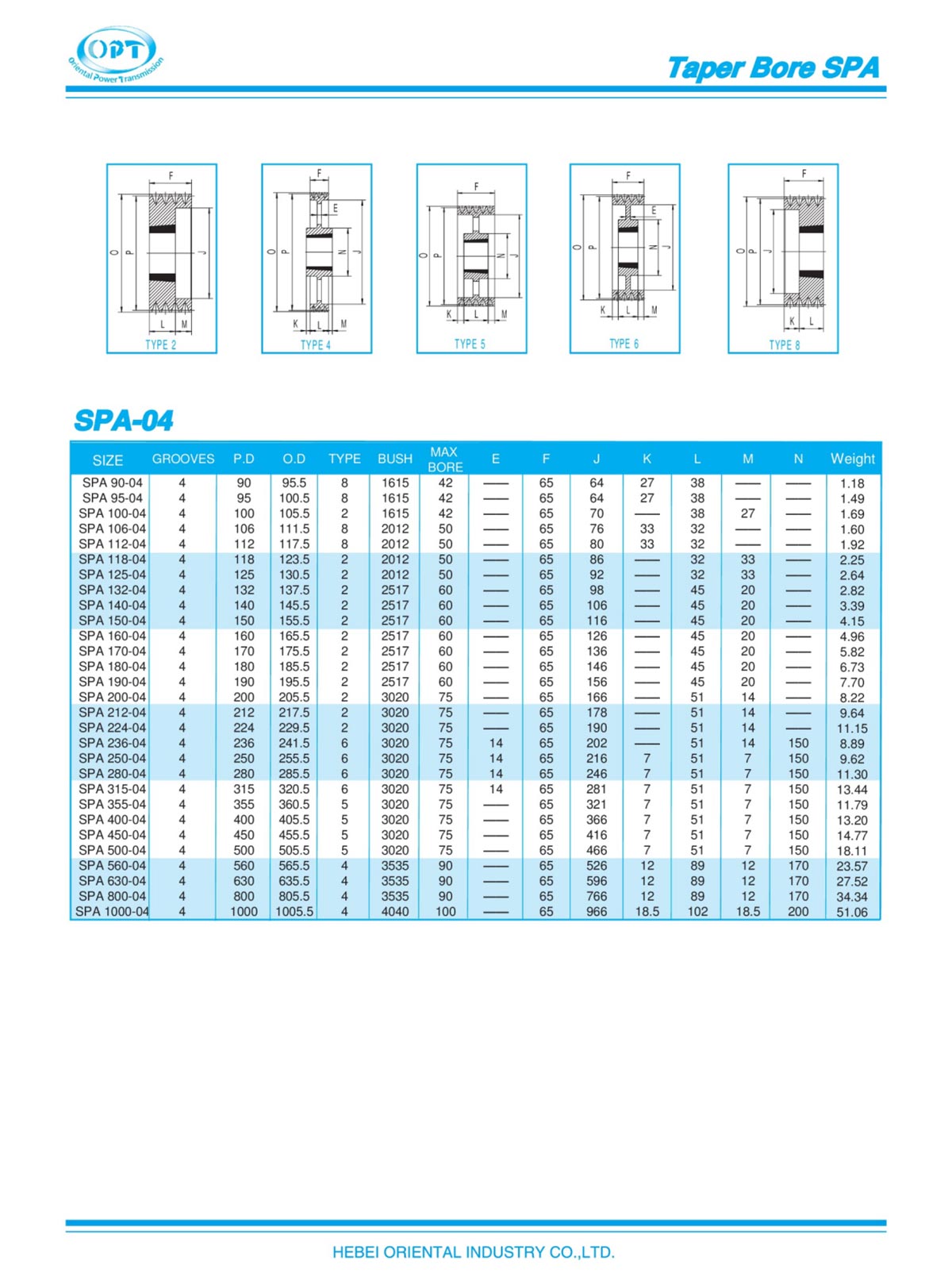

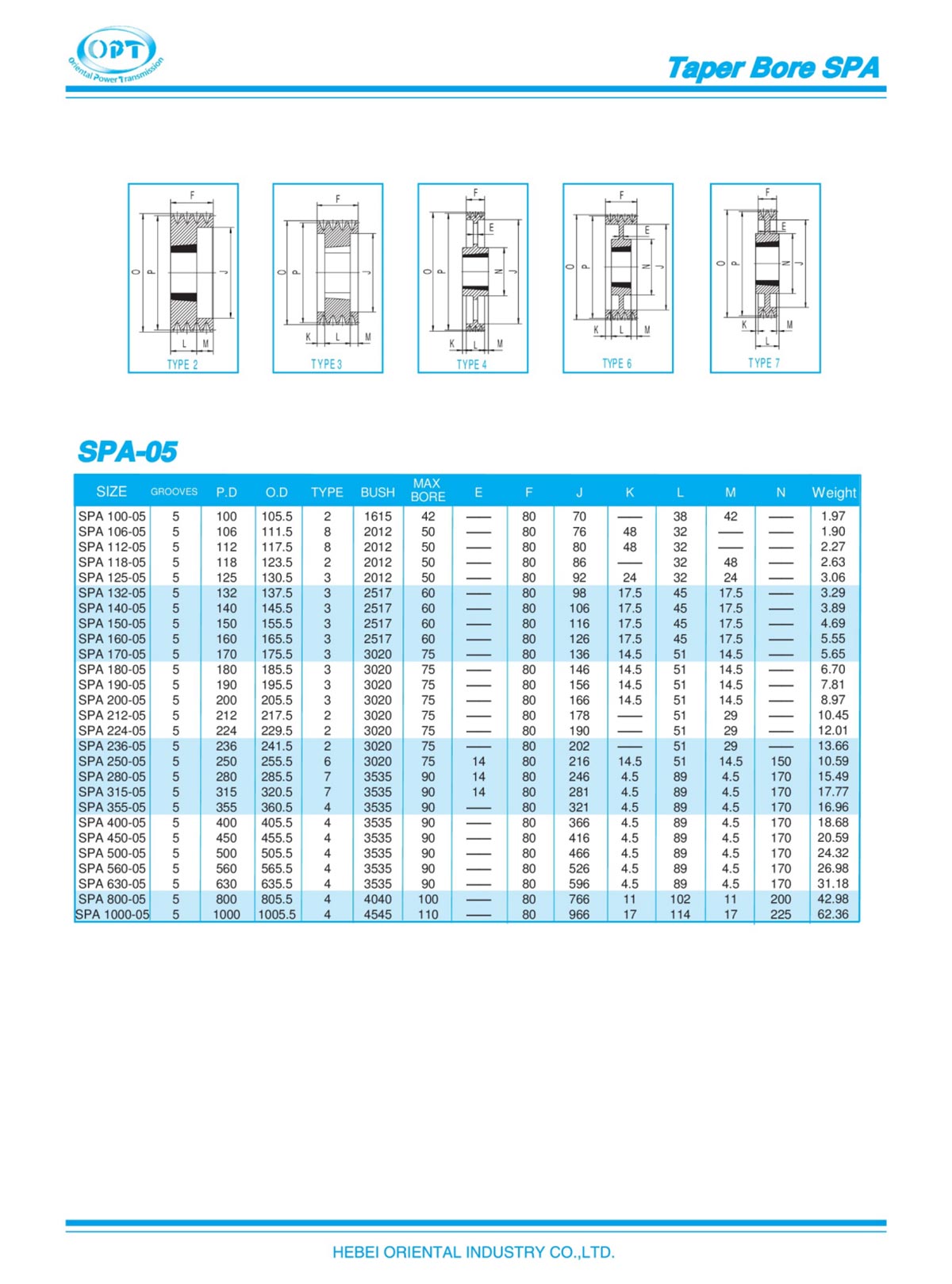

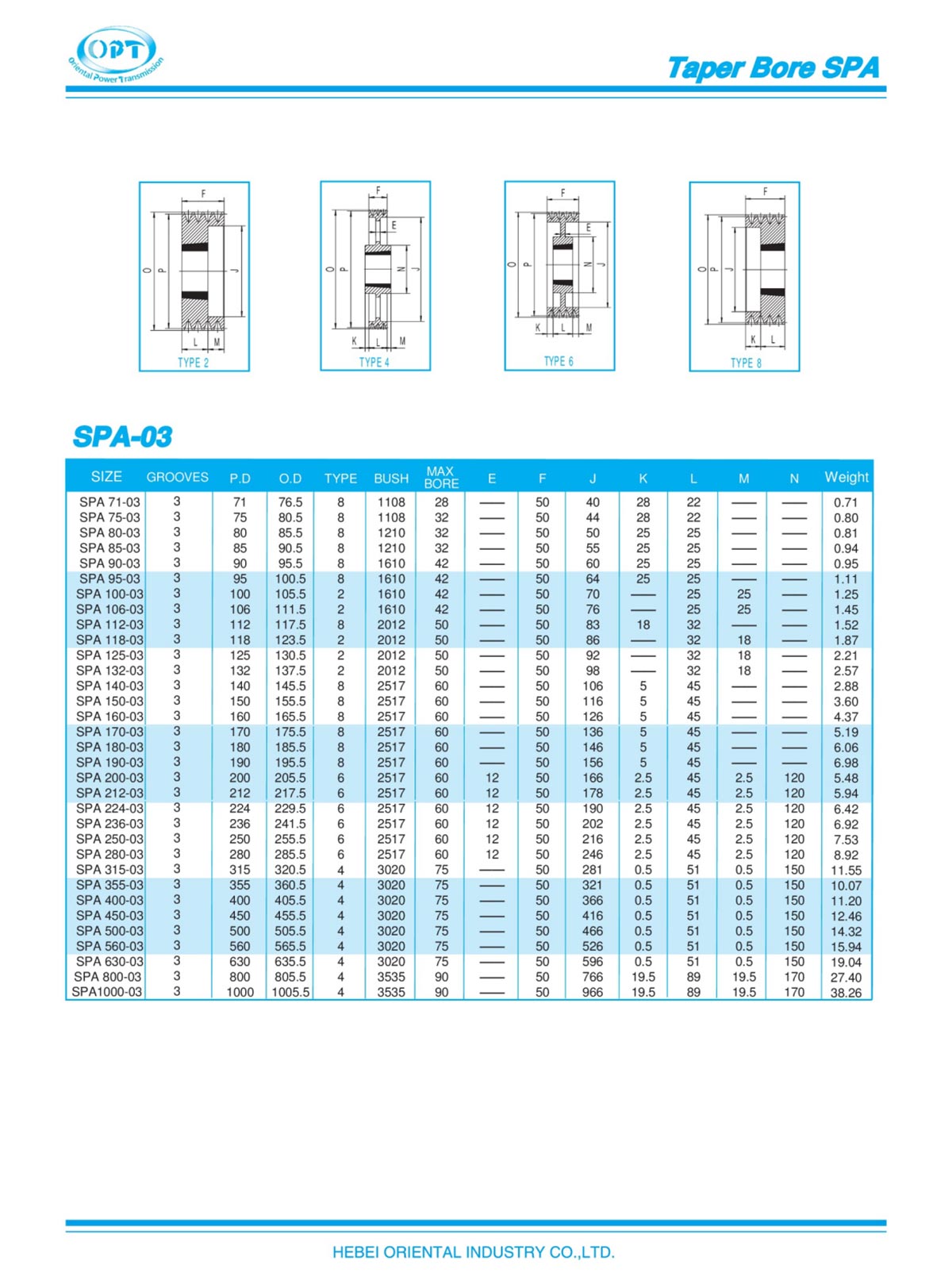

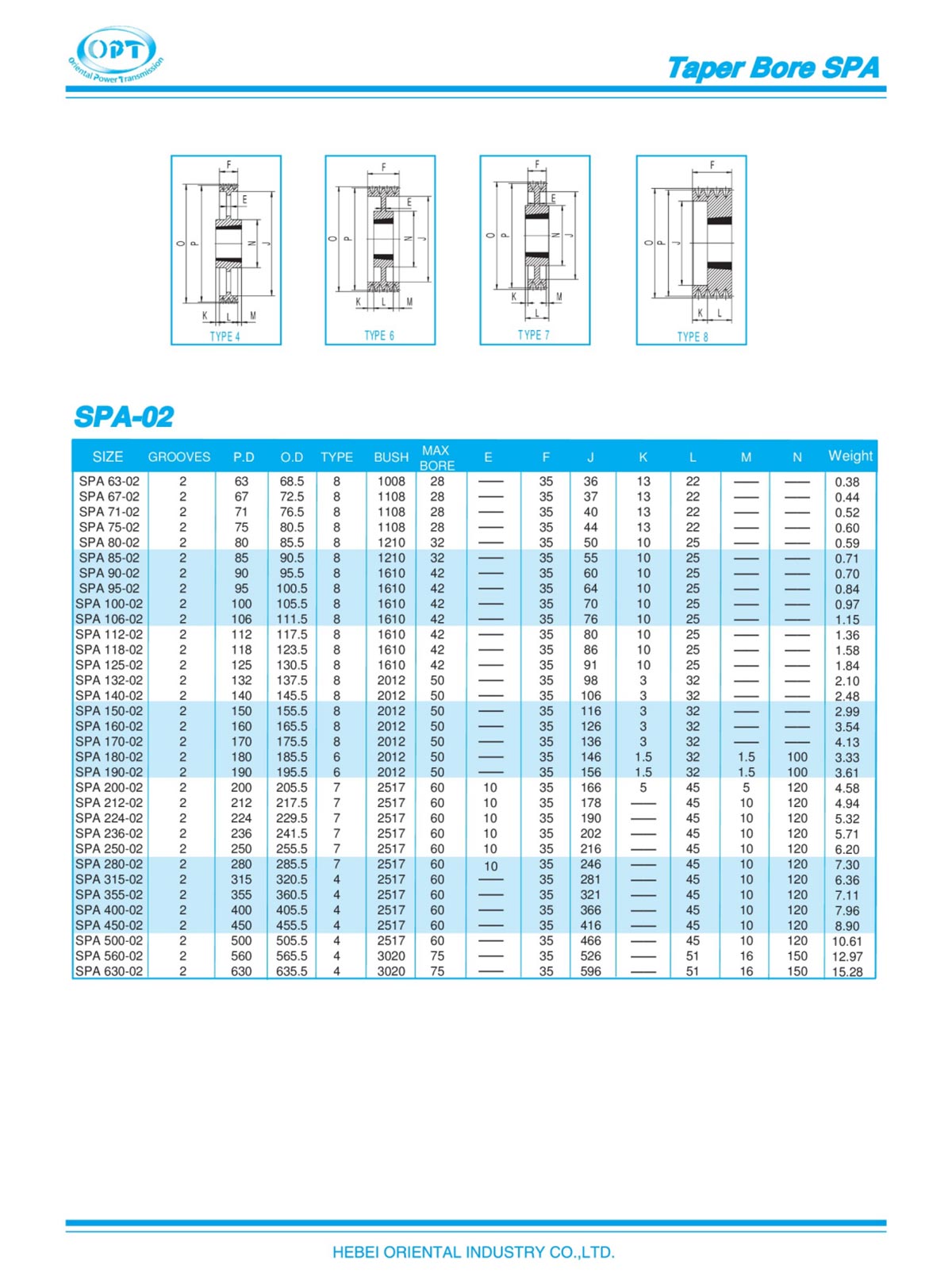

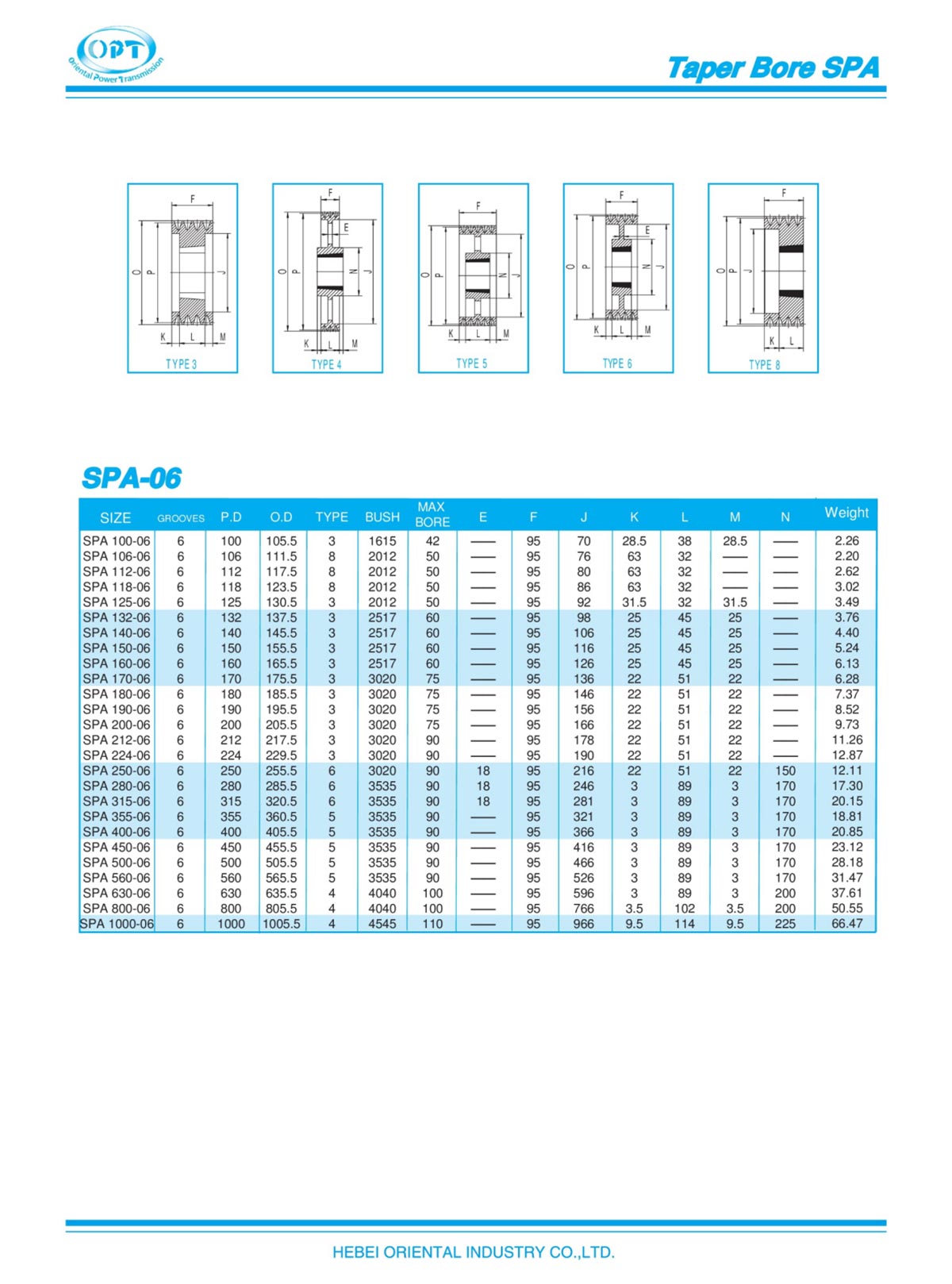

Narrow V belt SPZ SPA SPB SPC, each type of triangle belt defines the section size of triangle belt. At the same time, the minimum diameter of the small belt pulley corresponding to each wheel groove Angle of each type of triangle belt is specified, but the large belt pulley is not specified. The belt pulley groove Angle is divided into 34 degrees 38 degrees, the specific selection should be based on the belt pulley groove type and benchmark diameter selection; The slot Angle of the belt pulley is related to the diameter of the belt pulley. The recommended slot angles of different types of belt pulley in different diameters are as follows: SPA V-belt pulley When the pulley diameter <=118mm, the Angle is 34 degrees. SPA V-belt pulley When the pulley diameter >118mm, the Angle is 38 degrees.
-
SPB-1 SPB-2 SPB-3 SPB-4 SPB-5 SPB-6 SPB-8 SPB-10
Narrow V belt SPZ SPA SPB SPC, each type of triangle belt defines the section size of triangle belt. At the same time, the minimum diameter of the small belt pulley corresponding to each wheel groove Angle of each type of triangle belt is specified, but the large belt pulley is not specified. The belt pulley groove Angle is divided into 34 degrees 38 degrees, the specific selection should be based on the belt pulley groove type and benchmark diameter selection; The slot Angle of the belt pulley is related to the diameter of the belt pulley. The recommended slot angles of different types of belt pulley in different diameters are as follows: SPB V-belt pulley When the pulley diameter <=190mm, the Angle is 34 degrees. SPB V-belt pulley When the pulley diameter >190mm, the Angle is 38 degrees.
-
SPZ-1 SPZ-2 SPZ-3 SPZ-4 SPZ-5 SPZ-6 SPZ-8
SPZ V belt pulley
1. Material: Cast iron GG25, Ductile iron
2. Process: Machining – phosphating
3. Standard: European and American Standard
V pulley, v belt pulley, v groove pulley, v groove belt pulley, taper lock pulley, taper lock v belt pulley, taper lock bushing pulley, taper lock pulleys / taper bore pulley, large v belt pulley, double v belt pulley, cast iron v belt pulley belt pulley, variable speed v belt pulleys, v belt pulley split pulley, cast iron v belt pulley
V belt pulley specifications:
1) European standard:
A) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC; Up to 10 grooves
B) Adjustable speed V-belt pulleys and variable speed pulleys
C) Flat belt pulleys and conveyor belt pulleys
2) American standard:
A) Sheaves for taper bushings: 3V, 5V, 8V
B) Sheaves for QD bushings: 3V, 5V, 8V
C) Sheaves for split taper bushings: 3V, 5V, 8V
D) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH, 2BK, 2BKH, 3BK
E) Adjustable sheaves: Poly V-pulley, multi-pitch H, L, J, K and M
3) Bore: Pilot bore, finished bore, taper bore, bore for QD bushing
4) Surface finish: Paint, phosphating, zinc plated
5) Material: Cast iron, ductile iron, nylon, aluminum
6) Made according to drawings and/or samples, OEM inquiries welcomed
